AutoPOL GP-1AT single-disc automatic grinding and polishing machine
Product features
1. One machine is multi-purpose. One machine can realize the whole process of rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples, which can significantly save equipment cost and is an ideal sample preparation equipment for enterprises and scientific research institutions.
2. Stepless speed regulation. Special frequency conversion speed control system for grinding and polishing machine, users can customize three common speeds, set time and stop automatically.
3. High-efficiency and low-noise motor and control system, reliable and quiet equipment operation.
4. Fine grinding and surface treatment of the working disk to ensure the smooth surface of the sample.
5. Central loading, simple operation and high sample preparation efficiency.
6. Cast aluminum chassis, stable and reliable equipment operation.
7. The integrally formed high-strength composite shell is durable and never rusts.

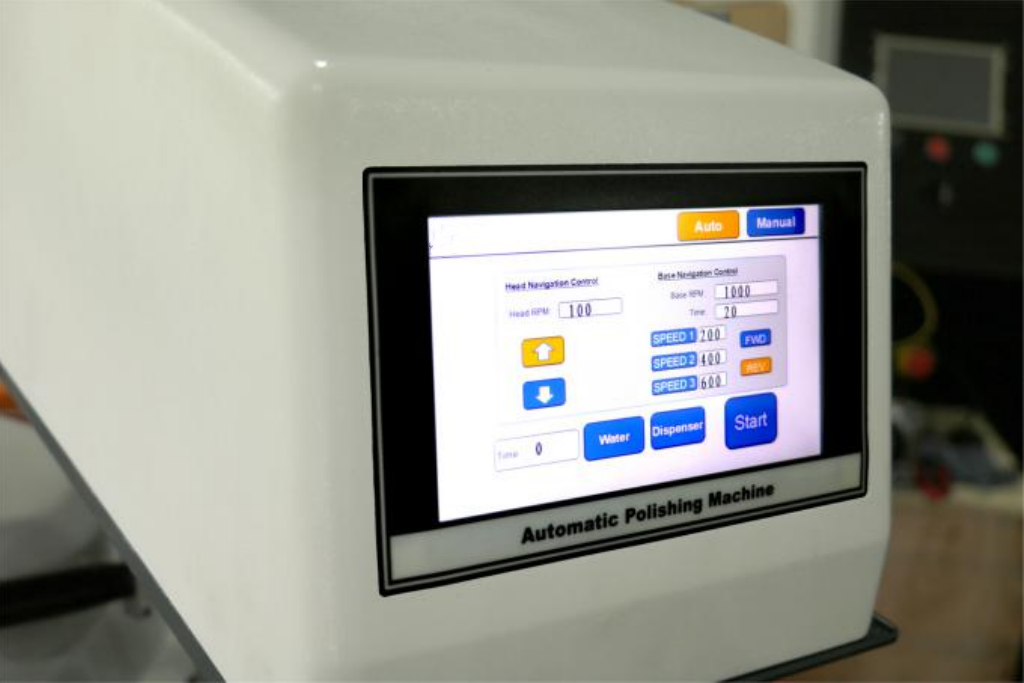

8.AutoPOL GP-1AT is a touch screen with friendly interface and convenient operation.
Application
Ideal grinding and polishing machine for enterprises and scientific research institutions
Product Description
AutoPOL GP -1A/ GP -1AT dual-disc automatic grinding and polishing machine is an ideal grinding and polishing machine for enterprises and scientific research institutes, which integrates the functions of pre-grinding, grinding and polishing of metallographic samples, with strong power, low noise, firmness and durability, and is equipped with automatic grinding and polishing head to greatly reduce the labor intensity.
Description
| AutoPOL GP-1A
| AutoPOL GP-1AT
|
|---|
| Wheel (mm) | ○Ø203 ●Ø254 |
| Speed(rpm) | 100-1000rpm，can be customized |
| Wheel | 1 | 1 |
| Motor | 550W |
| Mode | Automatic |
| Speed of head(rpm) | 50-200 |
| Holder(mm) | Φ30x6个，accept customization |
| Pressure | Individual Piston |
| Motor of Head | 90W |
| Power | 220V |
| Cooling water tank | Need |
| Air source | Need |
| Paper Ring | ● | ● |
| Splash guard | ● | ● |
| Cover | ● | ● |
| Grinding paper | ● | ● |
| Polishing Cloth | ● | ● |
| Diamond Spray | ○ | ○ |
| Diamond Slurry | ○ | ○ |
| Alumina Powder | ○ | ○ |
| Recirculating Tank | ○ | ○ |
●standard ○option
