Product Advantage
1. Multifonction. Rough grinding, fine grinding, rough throwing and fine throwing of metallographic samples are ideal sample preparation equipment for enterprises and scientific research institutions.
2. Stepless speed regulation. Special frequency conversion speed control system for grinding and polishing machine, users can customize three common speeds, set time and stop automatically.
3. High-efficiency and low-noise motor and control system, reliable and quiet equipment operation.
4. Fine grinding and surface treatment of the working disk to ensure the smooth surface of the sample.
5. Single-point pneumatic loading, without false samples.
6. Cast aluminum chassis, with stable and reliable design and operation.
7. The integrally formed high-strength composite shell is durable and never rusts.

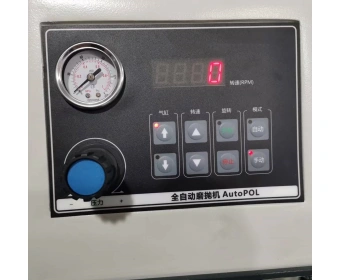

8.GP-1AT is a touch screen version with friendly interface and convenient operation.
Scope of use:
Ideal grinding and polishing machine for enterprises and scientific research institutions
Product description:
AUTO GP -1A/GP-2A single-disc automatic grinding and polishing machine is an ideal grinding and polishing machine for enterprises and scientific research institutions, which integrates the functions of pre-grinding, grinding and polishing of metallographic samples, with strong power, low noise, durability and simple operation.
| Description | AutoPOL GP-1A | AutoPOL GP-2A |
|---|
|
|
|
| Wheel (mm) | ○Ø203 ●Ø254 |
| Speed(rpm) | 100-1000rpm，can be customized |
| Wheel | 1 | 2 |
| Motor | 550W |
| Mode | Automatic |
| Speed of head(rpm) | 50-200 |

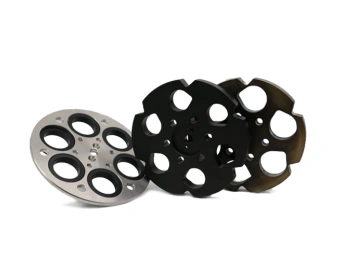

| Holder(mm) | Φ30x6pcs, customization acceptable |
| Pressure | Individual Piston |
| Motor of Head | 90W |
| Power | 220V |
| Paper Ring | ● | ● |
| Splash guard | ● | ● |
| Cover | ● | ● |
| Grinding paper | ● | ● |
| Polishing Cloth | ● | ● |
| Diamond Spray | ○ | ○ |
| Diamond Slurry | ○ | ○ |
| Alumina Powder | ○ | ○ |
| Recirculating Tank | ○ | ○ |
