UniPOL V0900 vibration polishing machine
1. A new generation of frequency conversion control, the sample surface polishing is more in line with the standard, and the digital measurement shows the operation reference.
2. Automatic polishing without operator's participation, and the running time can be set, thus realizing unattended automatic polishing, improving the working efficiency of personnel and reducing the cost of enterprises.
3. High-strength glass fiber reinforced plastic shell, anti-corrosion, anti-collision. Transparent dust cover can ensure the cleanliness of polishing disc.
4. It can bear embedded samples or larger samples without soil embedding.
5. Sample holders with different specifications can be selected: 1, 1.25,1.5, 2 inches, 32 mm and 50 mm, and special specifications can be customized.
Application
Widely used in major enterprises, institutions and scientific research institutions.
Product features
UniPOL V0900 is a newly designed metallographic phase vibration polishing machine, which can fully remove the deformation layer on the surface of the sample, eliminate the surface stress and improve the surface smoothness of the sample. It is very effective for the preparation of samples for EBSD analysis by SEM, and is widely used in major enterprises, institutions and scientific research institutions.
Description
| UniPOL V0900
|
|---|
| Bowl Size (mm) | Ø228.6mm/9inch |
| Power | 110/220V，50/60Hz |
| Motor | 350W |
| Dimension(WxDxH) | 430*530*440 |
| Weight(kg) | 82 |

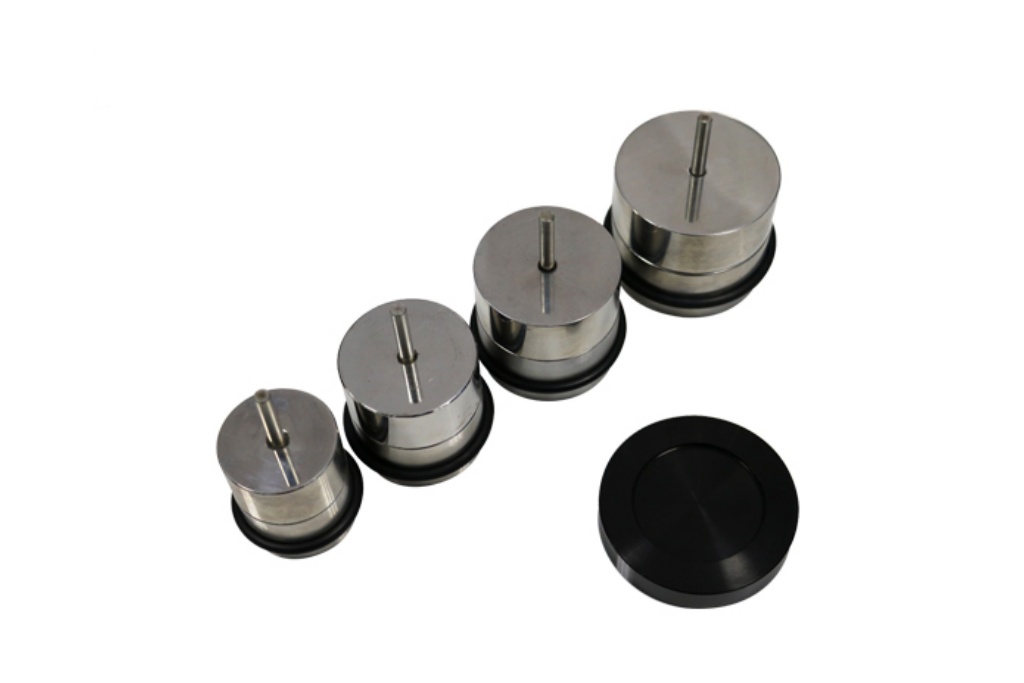

| Specimen Holder, 1.25inch | ● 3pcs |
| Holder Weights, 1.25inch | ● 3pcs |
| Lever Plate for 1.25inch | ● 1pcs |
| Polishing Pad | ● 1pcs |
| Other holders, weights and lever plate | ○ 1inch ○ 1.5inch ○ 2inch，can be customized |
