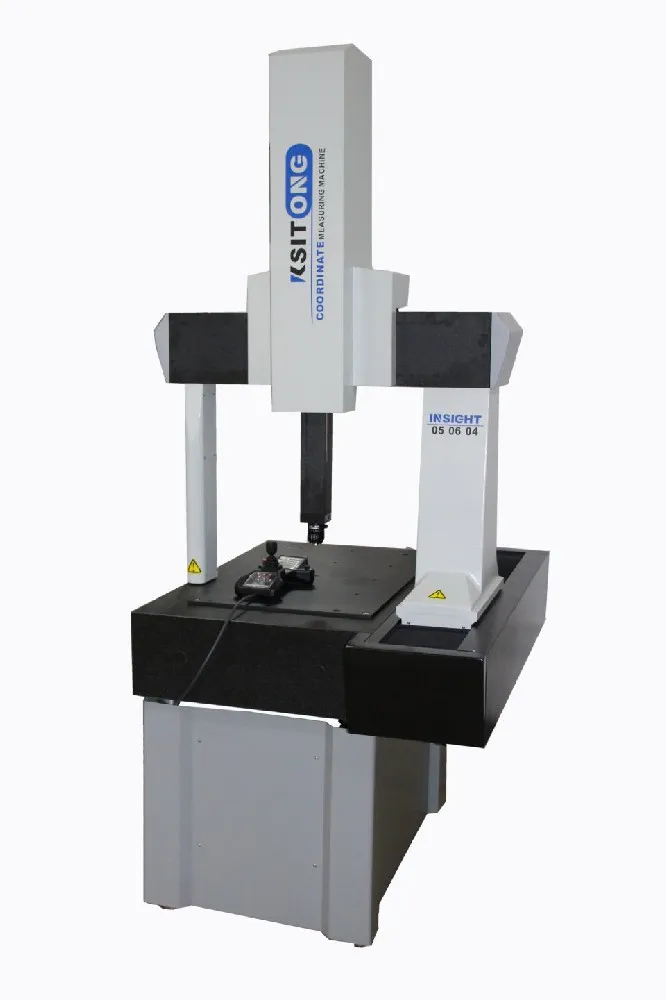

I. Introduction

Insight series coordinate measuring machine is designed and manufactured by Suzhou ZENZON Precision Instrument Co., Ltd. By using advanced design concept, stable materials and process, as well as the controlling system, measuring probe and sensor from Renishaw, which is the best in the industry, ensures the dynamic performance and measurement accuracy of the machine.

The measuring software is Rational DMIS, it’s well known in the industry for its fast calculation speed, advanced mathematical model, complete functions, intuitive operation and good stability. It can be widely used in the industry for first-piece inspection, final inspection, process and fixture inspection, process control, and reverse engineering applications.

Data
Model	Machine Size			Travel			N.W	Workbench		Load	Maximum workpiece size			Pitch of M10
								H	T
	Lx	Ly	Hz	X	Y	Z	STD	TH	GT	Max	X	Y	Z	X	Y
	mm	mm	mm	mm	mm	mm	kg	mm	mm	kg	mm	mm	mm	mm	mm
Insight-564	1060	1360	2270	500	600	400	750	800	230	800	620	1100	400	160	200
Insight-686	1320	1690	2750	600	800	600	1300	800	270	1000	750	1420	600	160	200
Insight-8106	1520	1890	2750	800	1000	600	1950	800	270	1000	950	1620	600	200	200
Insight-10128	1720	2090	3150	1000	1200	800	2500	800	270	1200	1150	1820	800	200	200
Insight-121511	2160	2850	3800	1200	1500	1100	5800	700	400	2000	1360	2500	1100	200	200

Performance
Model	TP20		TP200			Max Velocity	Max Acceleration
	MPEE	MPEp	MPEe	MPEp
	um		um			mm/s	mm/s2
Insight-564	2.4+L/300	2.4	2.2+L/300		2.2	600	600
Insight-686	2.6+L/300	2.6	2.4+L/300		2.4	500	500
Insight-8106	2.6+L/300	2.6	2.4+L/300		2.4	500	500
Insight-10128	2.8+L/300	2.8	2.6+L/300		2.6	400	400
Insight-121511	3.0+L/300	3.0	2.8+L/303		2.8	300	300

Customized dimensions:
Customization	Basic Models
	Insight-564	Insight-686	Insight-8106	Insight-10128	Insight-121511
X Range	≤600mm	/	≤1000mm	/	≤1350mm
Y Range	≤1000mm	≤1000mm	≤1500mm	≤1500mm	≤2500mm

Measuring Software

Rational DMIS CMM software is developed in strict accordance with industry standards to ensure the versatility of the program and the interchangeability of the hardware control system，which truly saves cost and improves efficiency for users. The standards include DMIS, I ++ protocol and PTB certificate, these represent advanced design concepts and future development trends in the coordinate metrology industry

1. High operating efficiency：

The traditional menu-pop-up style operation is outdated, for its steps are complex and not easy to be remembered, and it will cause redundancy on the interface.

Drag-and-drop type operations and touch type operations are becoming mainstream in the market, with features such as clean interfaces, easy operation, simple steps, and high efficiency.

2. Seamless connection with CAD：

CAD files are becoming more and more common, from product design, to mechanical processing and testing part, truly achieving synchronization and data sharing. CAD object-based programming: Automatic identification of digital and analog theoretical elements and rapid creation of measurement programs, making the programming of parts easy and fast.

3. Intelligent and powerful：

a) Advanced software platform：DOS, VB technology is outdated. VC technology and modular design have become the mainstream, and the software has the characteristics of being easier to expand and update, meanwhile minimizing the steps of new function implementation and maximizing the calculation speed.

b) With conventional functions such as intelligent measurement, collision detection, path simulation, and scanning probe extension.

4. Diversified output reports:

Standard: text reports, graphic reports, Form reports.

Support PDF, HTM, XML, XLS, DMO, OUT and other output formats.

Support serial port output directly, can send instructions to the lower computer, convenient for 2nd development.

Support user-defined output templates and call existing templates.

Real time graphical display

—— Functions such as path simulation, collision detection, and measurement planning improve the maneuverability and predictability of measurements. Makes the operation safer and reduces the risk of hardware damage due to misuse or lack of experience.

Real time graphical display

—— From the establishment of the machine model, to the creation of the probe, calibration, measurement, construction, tolerance, and output are all graphically displayed.
